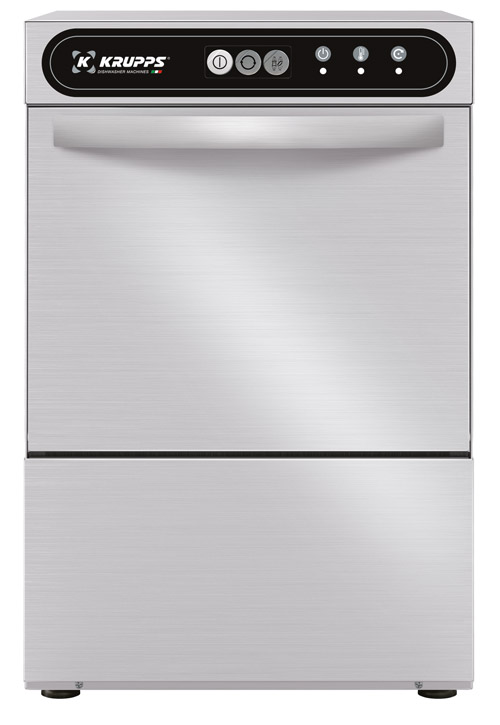

CUBE LINE C432

TYPE Glasswasher
LINE CUBE LINE
BASKET 400x400
SIZE 470x535x710h
CUBE LINE c432
UP
CUBE LINE c432
ADVANCE

Reliability and ease of use: these are the key words of the CUBE line. The UP control panel with buttons combines practicality and great durability. The simple and extremely efficient electronic card offers the possibility of setting and controlling the rinsing and draining times, the washing and rinsing temperatures and the relative Thermostops, crucial for ensuring excellent washing results. The ADVANCE panel (optional) is the real strength of the CUBE line thanks to its 4 washing cycles and one automatic drain cycle (with drain pump installed). On the control panel you can easily view the tank and boiler temperature, the messages of the Self-diagnosis system, the Scheduled Maintenance warning and the intelligent Start button, which changes colour to always display the dishwasher status very easily.

The C432 model, available with round basket or with square basket, is suitable for washing cups, glasses, saucers and dishes (using the appropriate basket) with a clearance of up to 295 mm, using a single 120-second standard cycle in the UP version.

The standard double electric rinse-aid and detergent dispenser ensures maximum hygiene at each wash cycle with great savings: the moulded washing and rinsing arms ensure reliability and durability. The bodywork is made entirely of AISI 304 steel and has been designed with all of the components in the front for easy technical assistance. Sturdy and reliable dishwashers to best deal with every moment of your day.

DISHWASHERS FEATURES
Dimensions - (mm) L - P - H 470x535x710h
n° baskets/hour - (+55°C) 30
Height glass max 275mm
Ø height plate max 295mm
Tank heating element - Tank capacity 2,6kW - 17lt
Boiler heating element - Boiler capacity 2,5kW - 3,2lt
Washing pump 0,26kW / 0,35Hp
Total power input / Current 2,86kW / 16A
Standard input voltage 230V 50Hz
Recommended inlet water temperature +55°C
Water hardness 7÷10 °f
Water consumption per cycle (inlet suggested pressure 2 BAR) 2,0lt
Adjustable detergent and rinse-aid dispenser ELECTRIC
STANDARD EQUIPMENT
Saucer holder 12 pieces 1
Cutlery insert 1
Basket for glasses dim.400x400x150mm 2
ACCESSORIES
UNIKO touch display with IKLOUD Wi-Fi control -
Booster pump kit 0,5Hp
Drain pump kit 40W
Reverse osmosis system -
Inclined basket for wine glasses dim.400x400x170mm
Kit 4 Stainless steel feet 50-70mm
ADVANCE display
= INSTALLABLE ACCESSORY , - = NOT INSTALLABLE ACCESSORY

C432
