Koral Line k560es

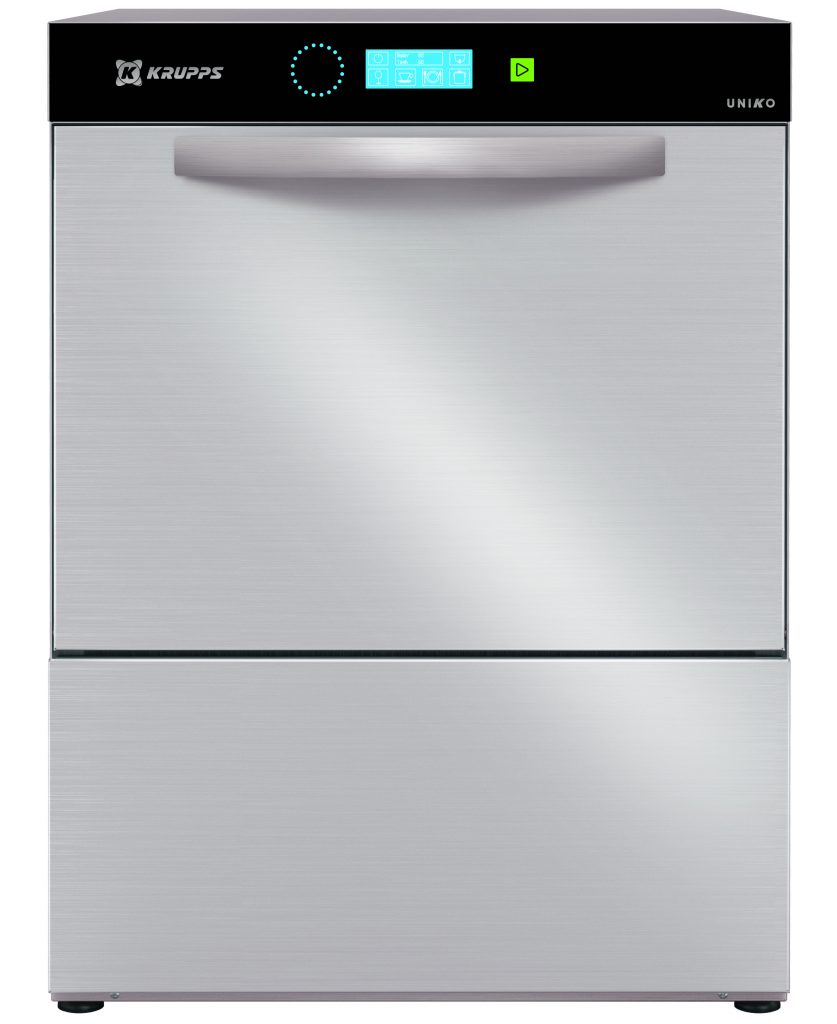

Koral Line K560ES

TYPE Undercounter warewasher
LINE Koral Line
BASKET 500X500
SIZE 585x610x750h

Share

The KORAL line is distinguished by its wide range of models suitable for any situation. Through the electronic card, the control system provides great customisation options based on your needs, allowing you to accurately adjust any parameter and ensure optimum washing results.
The innovative UNIKO tempered glass touch screen display makes any operation simple and intuitive, from the choice of most suitable wash cycle to its progress control, as well as constantly monitoring the dishwasher state with ease. The large variety of wash cycles makes the dishwasher customisable according to your needs. Constant self-diagnosis allows you to minimise machine downtime, promptly warning the technician through the Wi-Fi IKLOUD control system that gives the possibility of remotely changing the dishwasher parameters and resolving the situation in real-time.

The K560ES dishwasher is very compact and can be used to wash glasses of different shapes and sizes, as well as 18 dishes per wash with max Ø of 310mm thanks to the baskets provided, with a maximum productivity of 40 baskets/hour (720 dishes/hour). The drain pump optional allows you to handle draining automatically and perform a partial replacement of clean water at each wash.

The electronic control allows you to manage various parameters to give you an absolute customisation level and the continuous self-diagnosis allows you to minimise machine downtime, suggesting some operations that need to be verified. The self-cleaning cycle at the end of the day cleans the wash tank and empties the hot water from the boiler, preventing limestone from building up inside. The standard double peristaltic electric rinse-aid and detergent dispenser ensures the best result from each wash cycle with great savings thanks to the precise dosage managed by the electronic card; whereas, the moulded washing and rinsing arms ensure great reliability and durability. The Thermo-stop function checks that washing and rinsing begin only when the desired temperature is reached. The bodywork is made entirely of AISI 304 steel and has been designed with all of the components in the front for easy technical assistance. Sturdy and reliable dishwashers to best deal with every moment of your day.

DISHWASHERS FEATURES

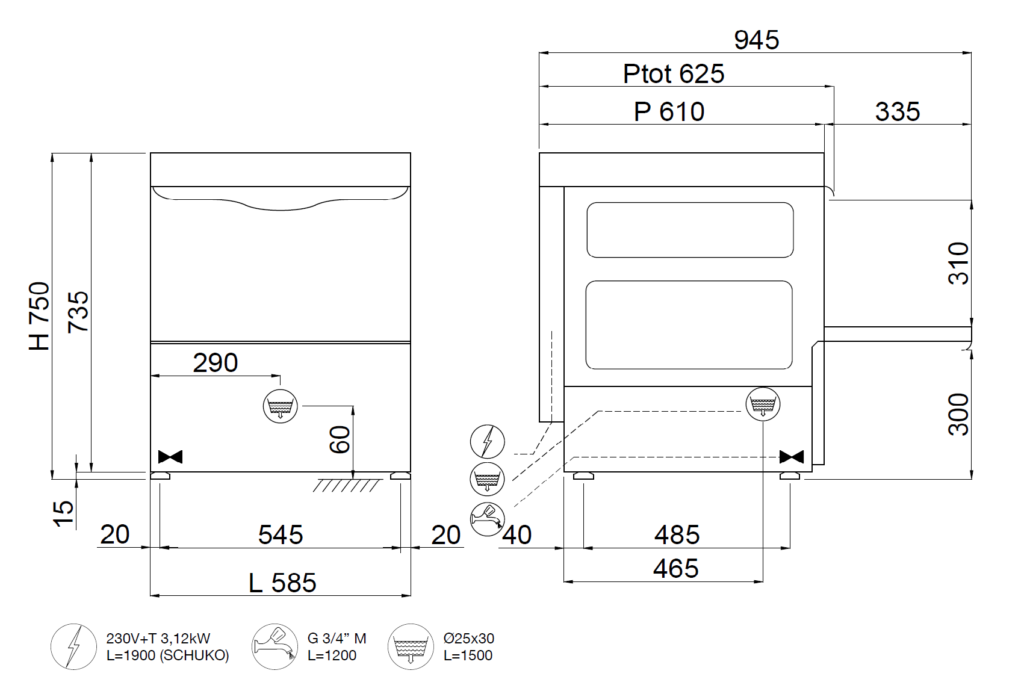

Dimensions - (mm) L - P - H 585x610x750h
n° baskets/hour - (+55°C) Max 40
Height glass max 255mm
Ø height plate max 270mm
Trays no
Tank heating element - Tank capacity 2,6kW - 24lt
Boiler heating element - Boiler capacity 5,4 kW - 7,3lt
Washing pump 0,52kW / 0,7Hp
Total power input / Current 5,92kW / 16A
Standard input voltage 400V3N+T 50Hz
Recommended inlet water temperature +55°C
Water hardness 7÷10 °f
Water consumption per cycle (inlet suggested pressure 2 BAR) 2,0lt
Adjustable detergent and rinse-aid dispenser ELECTRIC
STANDARD EQUIPMENT
Cutlery insert 2
Basket for glasses dim.500x500x100mm 1
Basket for 18 dishes dim.500x500x100mm 1
modulo_di_connesione_wi-fi_ikloud si
OPTION
UNIKO touch display with IKLOUD Wi-Fi control -
Input voltage 230V/3+T
Booster pump kit 0,5Hp
Drain pump kit 40W
Boiler heating element 4,5kW
Boiler heating element 9kW
Stainless steel tank filter kit for rack dishwasher 500x500
Reverse osmosis system -
Basket for trays with 4 compartments dim.500x500x200mm
Inclined basket for wine glasses dim.500x500x170mm
Kit 4 Stainless steel feet 50-70mm
= INSTALLABLE ACCESSORY , - = NOT INSTALLABLE ACCESSORY

K560ES
