TYPE Undercounter warewasher
BASKET 500X500
SIZE 585x610x750h
CUBE LINE c537ts
CUBE LINE c537ts

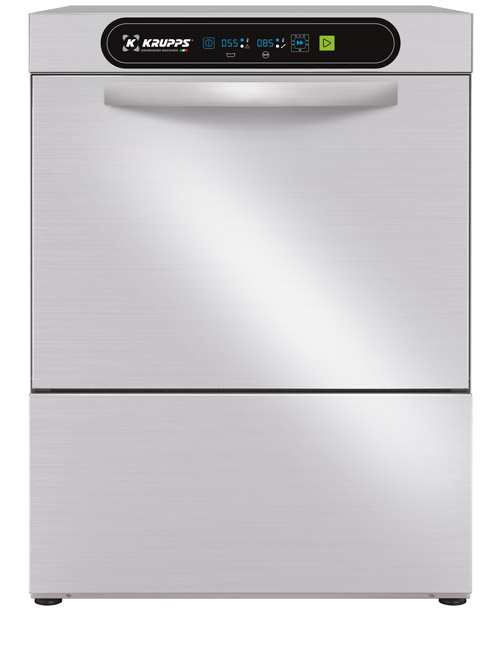

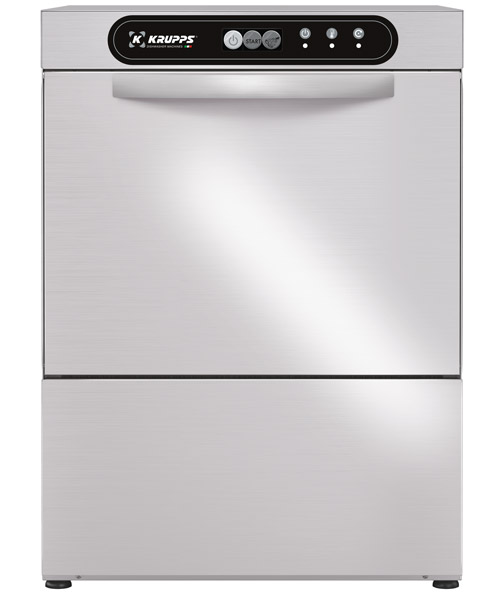

Reliability and ease of use: these are the key words of the CUBE line. The UP control panel with buttons combines practicality and great durability. The simple and extremely efficient electronic card offers the possibility of setting and controlling the rinsing and draining times, the washing and rinsing temperatures and the relative Thermostops, crucial for ensuring excellent washing results. The ADVANCE panel (optional) is the real strength of the CUBE line thanks to its 4 washing cycles and one automatic drain cycle (with drain pump installed). On the control panel you can easily view the tank and boiler temperature, the messages of the Self-diagnosis system, the Scheduled Maintenance warning and the intelligent Start button, which changes colour to always display the dishwasher status very easily.

The C537TS dishwasher is very compact and can be used to wash glasses of different shapes and sizes, as well as 18 dishes per wash with a max Øof 310mm thanks to the baskets provided, using a single 120-second standard cycle in the UP version, with a maximum productivity of 30 baskets/hour (540 dishes/hour).

The standard double electric rinse-aid and detergent dispenser ensures maximum hygiene at each wash cycle with great savings: the moulded washing and rinsing arms ensure reliability and durability. The bodywork is made entirely of AISI 304 steel and has been designed with all of the components in the front for easy technical assistance. Sturdy and reliable dishwashers to best deal with every moment of your day.

Dimensions - (mm) L - P - H 585x610x750h
Height glass max 255mm
Ø height plate max 310mm
Trays NO
Tank heating element - Tank capacity 2,6kW - 24lt
Boiler heating element - Boiler capacity 2,5kW - 7,3lt
Washing pump 0,52kW / 0,7Hp
Total power input / Current 3,12kW / 16A
Standard input voltage 230V 50Hz
Recommended inlet water temperature +55°C
Water hardness 7÷10 °f
Water consumption per cycle (inlet suggested pressure 2 BAR) 2,0lt
Adjustable detergent and rinse-aid dispenser ELECTRIC
Cutlery insert 2
Basket for glasses dim.500x500x100mm 1
Basket for 18 dishes dim.500x500x100mm 1
UNIKO touch display with IKLOUD Wi-Fi control -
Drain pump kit 40W
Thermo/acoustic insulation double wall kit and upper cover
Stainless steel tank filter kit for rack dishwasher 500x500
Reverse osmosis system -
Basket for trays with 4 compartments dim.500x500x200mm
Inclined basket for wine glasses dim.500x500x170mm
Kit 4 Stainless steel feet 50-70mm
ADVANCE display

Do you want to receive more information on this product? Contact us and receive an answer as soon as possible
